Product Overview

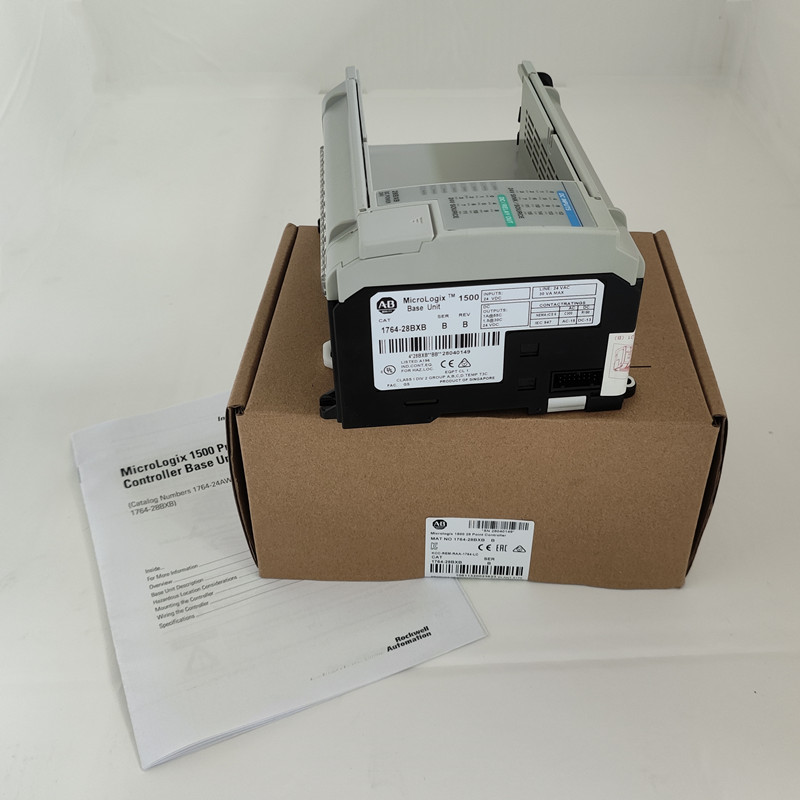

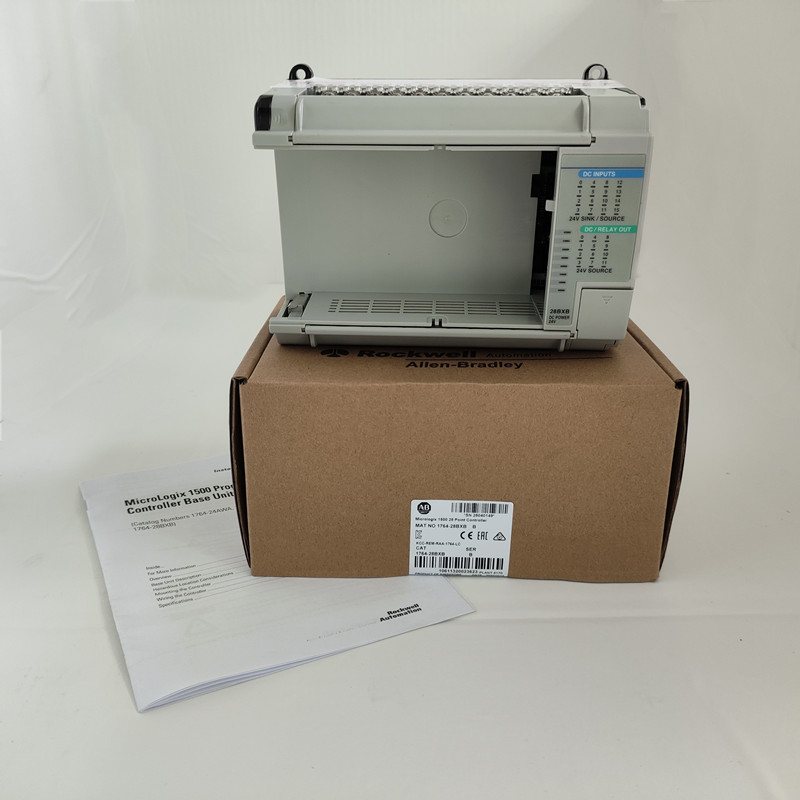

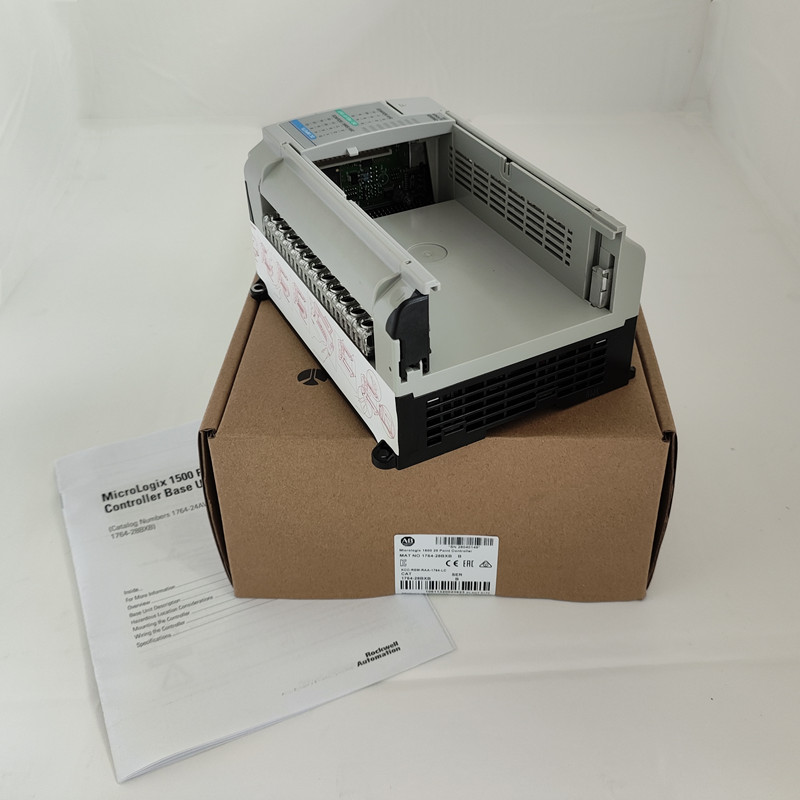

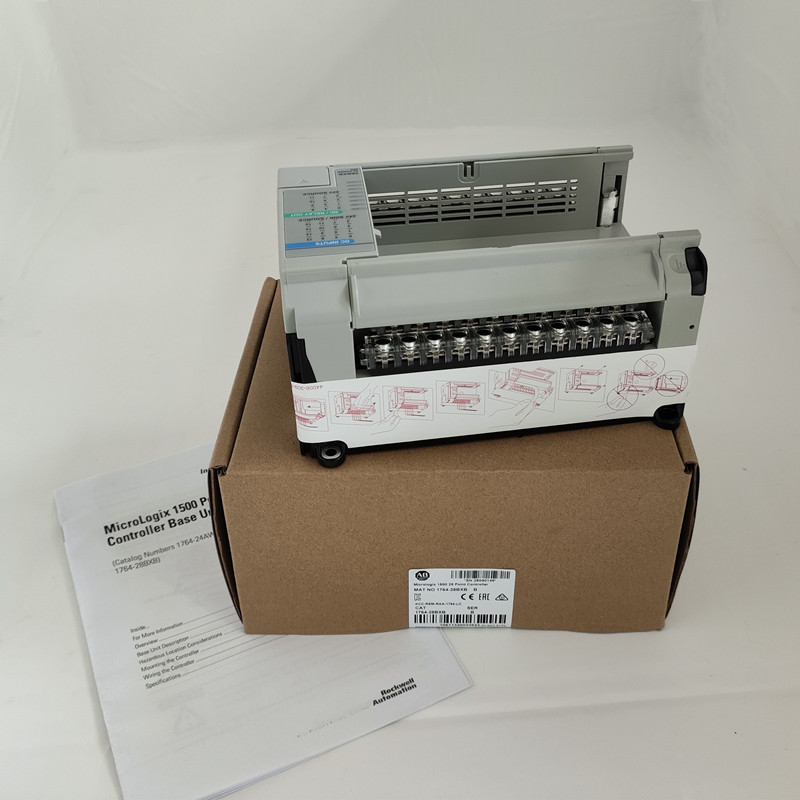

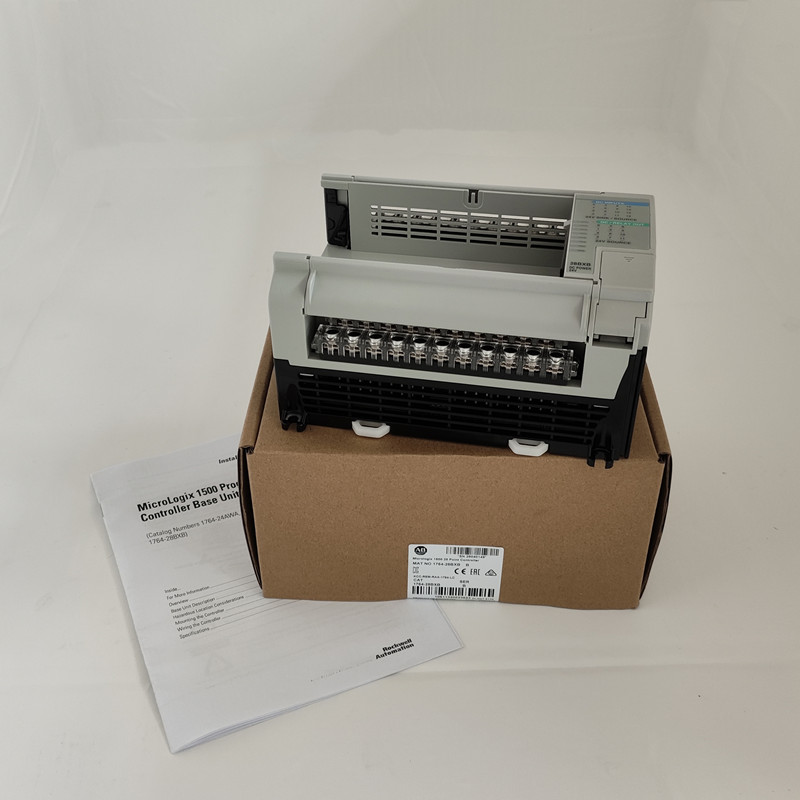

The Allen‑Bradley 1764‑28BXB MicroLogix 1500 Base Unit is a compact PLC base from Rockwell Automation for small‑to‑medium automated machinery. This base unit provides 16 × 24V DC inputs and 12 outputs (6 relay outputs +6 FET transistor outputs), total 28 I/O points. It includes 8 high‑speed 20kHz input channels, perfect for encoder and high‑speed counter applications on production lines.

Key Product Features

1. Total 28 I/O points:16 DC inputs, 6 relay outputs,6 FET outputs
2. 8 high‑speed 20kHz counter inputs for encoder signal acquisition
3. 24V DC power supply for the base unit
4. Supports MicroLogix 1500 processor module installation, compatible system expansion
5. Compact cabinet‑mount design for industrial control cabinet installation
6. CE & UL certified, stable performance for harsh industrial workshop environments

Technical Highlights

Model：1764‑28BXB

Series：MicroLogix 1500

Power supply：24V DC

Input：16 points 24V DC sink/source, including 8‑channel high‑speed 20kHz input

Output：6‑channel Relay Output +6‑channel FET Output

Communication port：RS‑232 communication interface

Our Service Advantages for B2B Buyers

✔ We supply genuine Allen‑Bradley industrial automation PLC parts, strict item inspection before shipment.

✔ Small order acceptable, MOQ:1 piece.

✔ Worldwide shipping available.

✔ Quick quotation reply within working hours, professional technical support for your selection.

If you need further technical data sheet or dimension information, please send us an inquiry.
